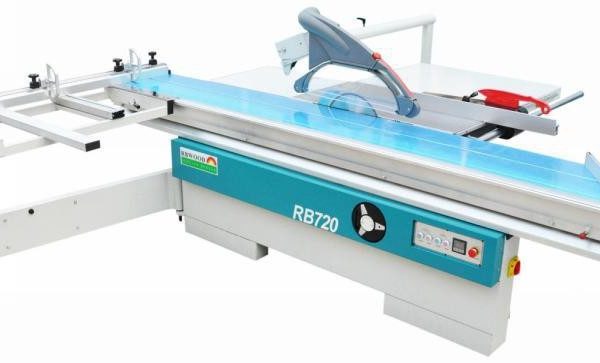

IPS-RB 720
Open larger image
Integrated Power System

IPS-RB 720

Dimension of sliding table 3200mm*430mm Width of cut 1250mm Maximum height of cut 90°/45° 100/75mm Table height 850mm Tilting style/blade up&down Manual/Manual Maximum main saw blade size 400mm*30mm Scoring saw diameter 120mm*20mm Dust Collector inlet 100mm Main power/Scoring power 5.5Kw/0.75Kw Voltage 380V/220V/400V/415V…

Manufacturer
Integrated Power System
Model
IPS-RB 720
SKU
bb27f3e4328d
Category
Industrial Products
$6,250.00

Request a quote

Contact IPS to confirm availability and delivery.

Description

Dimension of sliding table 3200mm*430mm
Width of cut 1250mm
Maximum height of cut 90°/45° 100/75mm
Table height 850mm
Tilting style/blade up&down Manual/Manual
Maximum main saw blade size 400mm*30mm
Scoring saw diameter 120mm*20mm
Dust Collector inlet 100mm
Main power/Scoring power 5.5Kw/0.75Kw
Voltage 380V/220V/400V/415V
Speed of main saw spindle 4000/6000rpm
Speed of scoring saw blade 8800rpm

Additional information

Weight 900 lbs
Dimensions 140 × 140 × 48 in
