IPS-RB 50A

← Back to parts

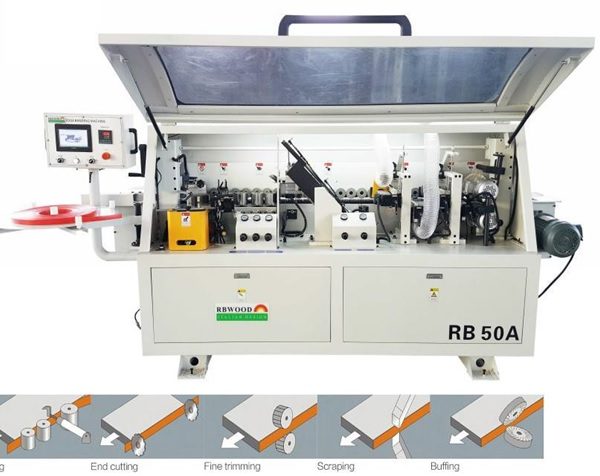

IPS-RB 50A
Open larger image
Integrated Power System

IPS-RB 50A

Edge thickness 0.4~3mm Feed speed 18m/min Panel thickness 9~50mm Panel length ?140mm Panel width ?50mm Glue motor power 0.37kw Glue tank heating power 1.5kw End cutting motor power 0.55 kw*2 @18000rpm Fine trimming motor power 0.75 kw*2 @ 18000rpm Buffing motor power…

Manufacturer
Integrated Power System
Model
IPS-RB 50A
SKU
a145a552600d
Category
Industrial Products
$14,250.00

Request a quote

Contact IPS to confirm availability and delivery.

Description

Edge thickness 0.4~3mm Feed speed 18m/min Panel thickness 9~50mm Panel length ?140mm Panel width ?50mm Glue motor power 0.37kw Glue tank heating power 1.5kw End cutting motor power 0.55 kw*2 @18000rpm Fine trimming motor power 0.75 kw*2 @ 18000rpm Buffing motor power 0.18 kw*2 @ 1400rpm Total motor power 7.0 kw Working pressure 0.7Mpa Extended support 550mm Outline size 2950*750*1360mm

Additional information

Weight 1100 lbs
Dimensions 130 × 48 × 70 in
