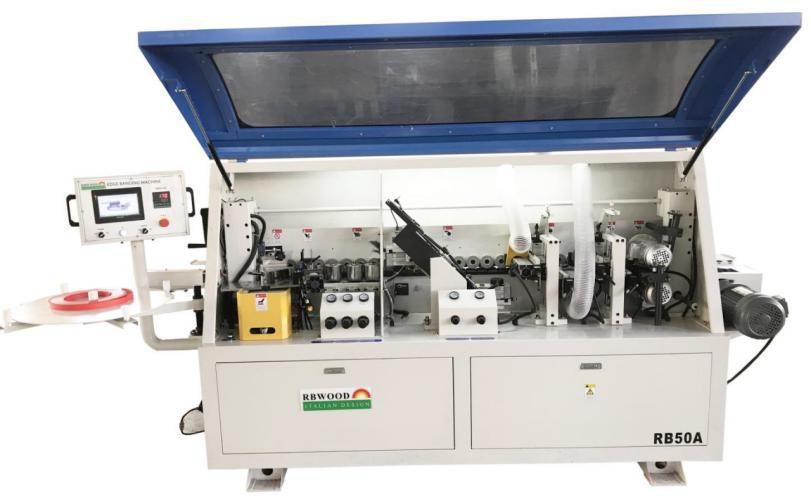

IPS-RB 50A Blue

Edge thickness 0.4-3mm Feed speed 18m/min Panel thickness 10~40mm Panel length ?140mm Panel width ?50mm Glue motor power 0.37kw Glue tank heating power 1.5kw End cutting motor power 0.55 kw*2 @18000rpm Fine trimming motor power 0.75 kw*2 @ 18000rpm Buffing motor power…

Manufacturer: Integrated Power System
Model: IPS-RB 50A Blue
SKU: b89491a773d6
Category: Industrial Products

$15,500.00

Contact IPS to confirm availability and delivery.

Description

Edge thickness 0.4-3mm
Feed speed 18m/min
Panel thickness 10~40mm
Panel length ?140mm
Panel width ?50mm
Glue motor power 0.37kw
Glue tank heating power 1.5kw
End cutting motor power 0.55 kw*2 @18000rpm
Fine trimming motor power 0.75 kw*2 @ 18000rpm
Buffing motor power 0.18 kw*2 @ 1400rpm
Total motor power 7.0 kw
Working pressure 0.7Mpa
Outline size 2950*750*1360mm

Additional information

Weight	1150 lbs
Dimensions	130 × 48 × 70 in
