WIKA 75010902

Description

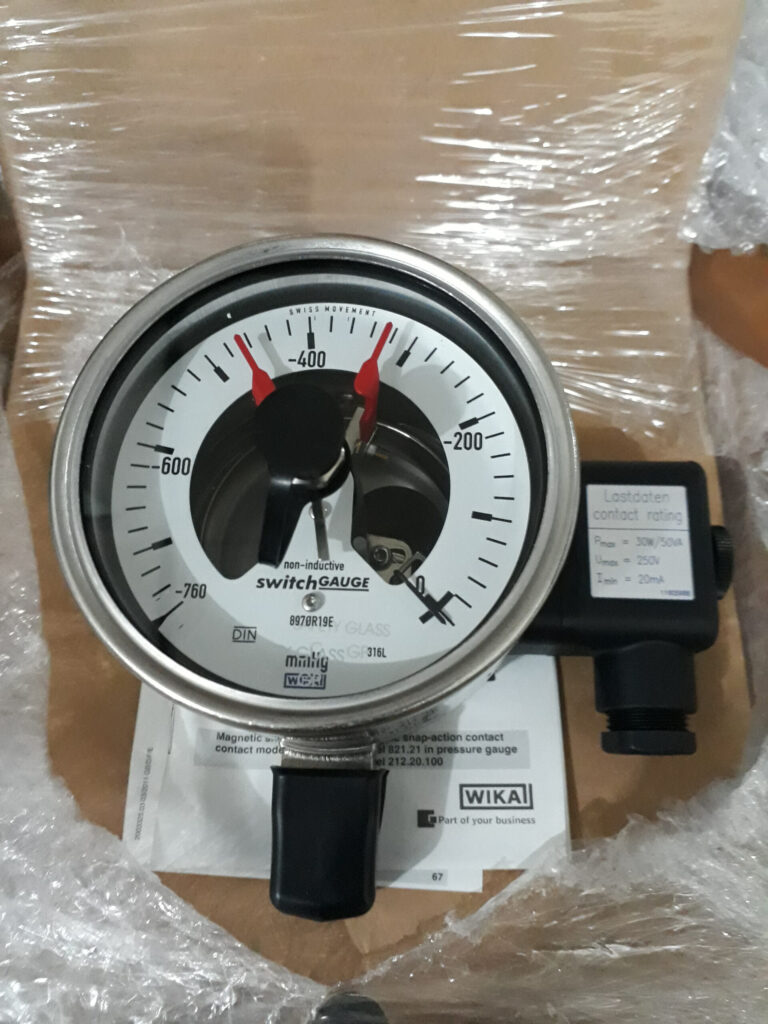

Wika switch GAUGE PGS23.100/160
pressure gauge with switches
bourdon tube measuring system, stainless steel
Specifications according to data sheet: PV 22.02 e AC 08.01
switch: magnetic snap action switch, model 821
1st Switch Operation: breaks (2)
Electrical Connection: terminal box
Nominal size: 100
Measuring range: gauge pressure range
Scale range: 0/10 bar
Process Connection: 1/2 NPT
Connector position: lower mount
Liquid Damping (case filling): with
Case: With Pressure Blowout Disk
Pressure Gauge Standard: International (standard Europe)
Accuracy Class: class 1.0
Case filling fluid: Silicon oil, 50 cSt
Window: laminated safety glass
Ingress Protection: IP 65
Permissible medium temperature: -20 … +100 °C (-4 … +212 °F)
Permissible ambient temperature: -20 … +60 °C.
