PMC51-AA21JA1PGJGMJN+AAZ1

Description

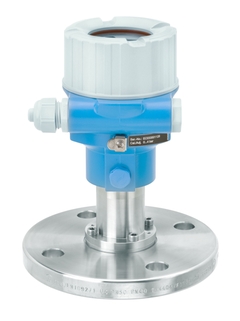

Cerabar M PMC51
PMC51-6NUN0/101
Your item number: 910002

Pressure, capacitive.
compact.
Application: pressure/level.
Membrane: Ceraphire,
dry, vacuum proof.
:: Easiest on-site operation.
:: Modular.
AA Approval: Non-hazardous area
2 Output: 4-20mA HART
1 Display, Operation: LCD, push button on
display/electronics
J Housing: F31 Alu, glass window
A Electrical Connection: Gland M20, IP66/68
NEMA4X/6P
1P Sensor Range: 10bar/1MPa/150psi gauge,
100mH2O/333ftH2O/4000inH2O overload:
40bar/4MPa/600psi
G Reference Accuracy: Standard
J Calibration; Unit: Customised pressure; see
additional spec.
GMJ Process Connection: Thread ISO228 G1/2 hole
11.4mm, 316L
N Seal: FFKM Kalrez 6221, FDA, USP Class VI
AA >Additional Operation Language: English
Z1 >>Marking: Tagging (TAG), see additional spec.
Details
Low range value 1.000- bar
Upper range value 10.000 bar
2nd value display none
Damping [s] 2
Device 1
Tag plate Stainless Steel (52006326)
