KAF39-K4-(90)

Description

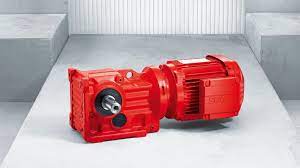

Siemens Checklist type KAF39-K4-(90) Type description SIMOGEAR bevel gear unit Degree of protection – Mounting position M1-A Dimension sheet (complete) KAF030K4
Color tone of top coat 7016
Color quality C3
Ratio 5.75 : 1
Theoretical output speed, rpm
Torque, Nm 41.7
Service factor 3.6
Dimension sheet KAF030K4
ackstop NA
1. Gearbox output shaft diam. H30 mm
1. Gearbox output shaft length –
1. Gearbox flange diameter 160 mm
Confirmation Drywell: –
Confirmation Sealing: MSS1
Without motor.
