IPS-RB 560B

← Back to parts
IPS-RB 560B
Open larger image
IPS-RB 560B
Integrated Power System

IPS-RB 560B

Edge thickness 0.4-3mm Feed speed 12-20m/min Panel thickness 10-60mm Panel length ?150mm Panel width ?60mm Glue motor power 0.37kw Glue tank heating power 1.5kw End cutting motor power 0.55 kw*2 @18000rpm Fine trimming motor power 0.75 kw*2 @ 18000rpm Buffing motor power…

Manufacturer
Integrated Power System
Model
IPS-RB 560B
SKU
5e4e411f6e5d
Category
Industrial Products
$18,750.00

Request a quote

Contact IPS to confirm availability and delivery.

Description

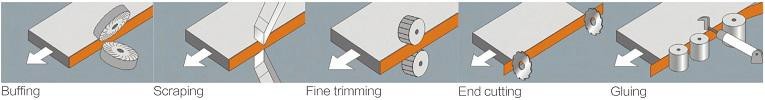

Edge thickness 0.4-3mm Feed speed 12-20m/min Panel thickness 10-60mm Panel length ?150mm Panel width ?60mm Glue motor power 0.37kw Glue tank heating power 1.5kw End cutting motor power 0.55 kw*2 @18000rpm Fine trimming motor power 0.75 kw*2 @ 18000rpm Buffing motor power 0.18 kw*2 @ 1400rpm Total motor power 8 kw Working pressure 0.8Mpa Outline size 4150*1000*1600mm

Additional information

Weight 2000 lbs
Dimensions 190 × 48 × 70 in
Subtitle

Reviews

There are no reviews yet.

Be the first to review “IPS-RB 560B”
