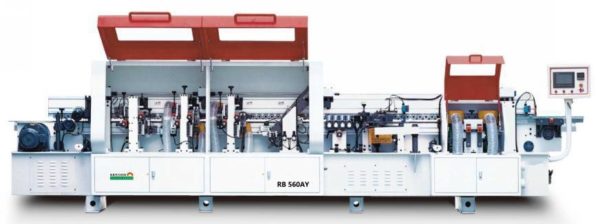

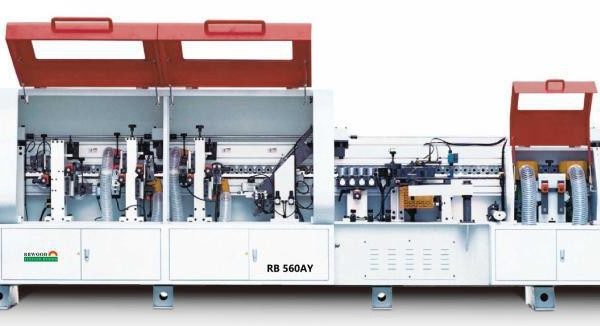

IPS-RB 560AY

Description

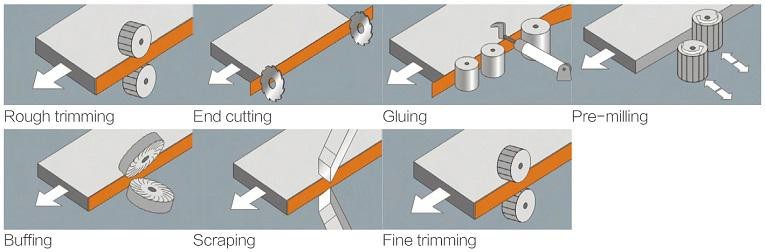

Edge thickness 0.4-3mm Feed speed 12-20m/min Panel thickness 10-60mm Panel length ?150mm Panel width ?60mm Pre-milling motor power 2.2 kw*2@12000rpm Glue motor power 0.37kw Glue tank heating power 1.5kw End cutting motor power 0.55 kw*2 @18000rpm Rough trimming motor power 0.75 kw*2 @ 18000rpm Fine trimming motor power 0.75 kw*2 @ 18000rpm Buffing motor power 0.18 kw*2 @ 1400rpm Total motor power 15kw Working pressure 0.8Mpa Outline size 5900*1000*1600mm
