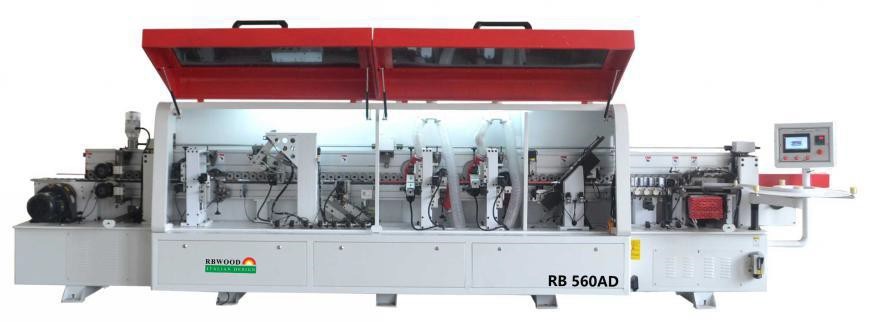

IPS-RB 560AD

Description

Edge thickness 0.4-3mm
Feed speed 12-20m/min
Panel thickness 10-60mm
Panel length ?140mm
Panel width ?50mm
Glue motor power 0.37kw
Glue tank heating power 1.5kw
End cutting motor power 0.55 kw*2 @18000rpm
Rough trimming motor power 0.75 kw*2 @ 18000rpm
Fine trimming motor power 0.75 kw*2 @ 18000rpm
Buffing motor power 0.18 kw*2 @ 1400rpm
Total motor power 11 kw
Working pressure 0.8Mpa
Outline size 7650*1000*1600mm
