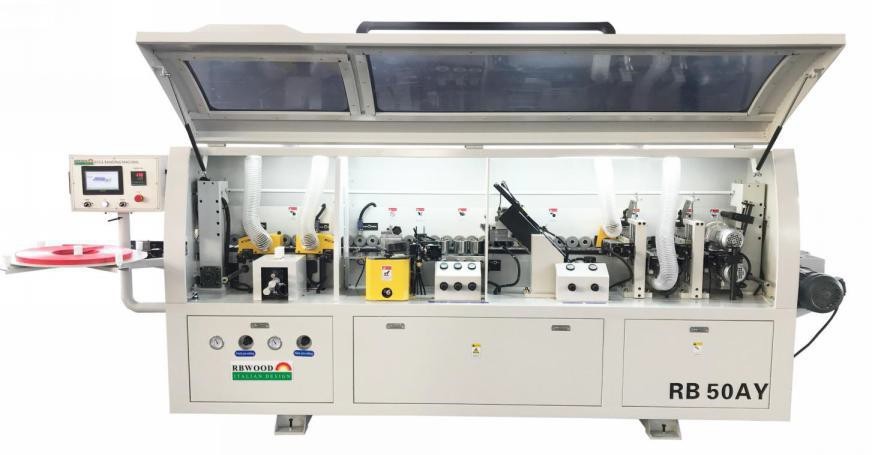

IPS-RB 50AY

Description

Edge thickness 0.4-3mm
Feed speed 18m/min
Panel thickness 10-50mm
Panel length ?140mm
Panel width ?50mm
Pre-milling motor power 1.8 kw*2@12000rpm
Glue motor power 0.37kw
Glue tank heating power 1.5kw
End cutting motor power 0.55 kw*2 @18000rpm
Fine trimming motor power 0.75 kw*2 @ 18000rpm
Buffing motor power 0.18 kw*2 @ 1400rpm
Total motor power 11.0 kw
Working pressure 0.7Mpa
Outline size 3800*800*1410mm
