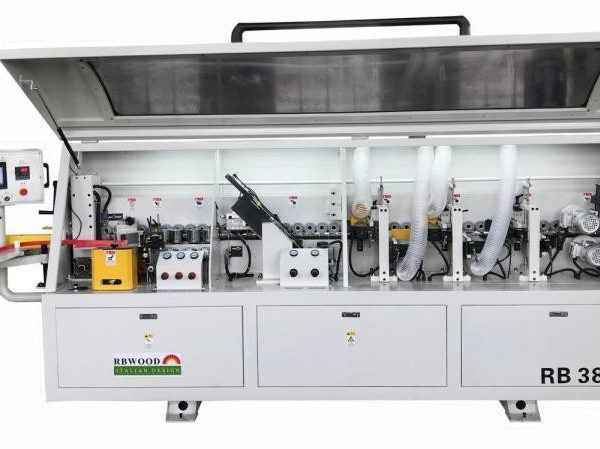

IPS-RB 380AC

Description

Edge thickness 0.4-3mm Feed speed 18m/min Panel thickness 10-50mm Panel length ?140mm Panel width ?50mm Glue motor power 0.37kw Glue tank heating power 1.5kw End cutting motor power 0.55 kw*2 @18000rpm Rough trimming motor power 0.75 kw*2 @ 18000rpm Fine trimming motor power 0.75 kw*2 @ 18000rpm Buffing motor power 0.18 kw*2 @ 1400rpm Total motor power 8.5 kw Working pressure 0.7Mpa Extended support 550mm Outline size 3940*900*1500mm
