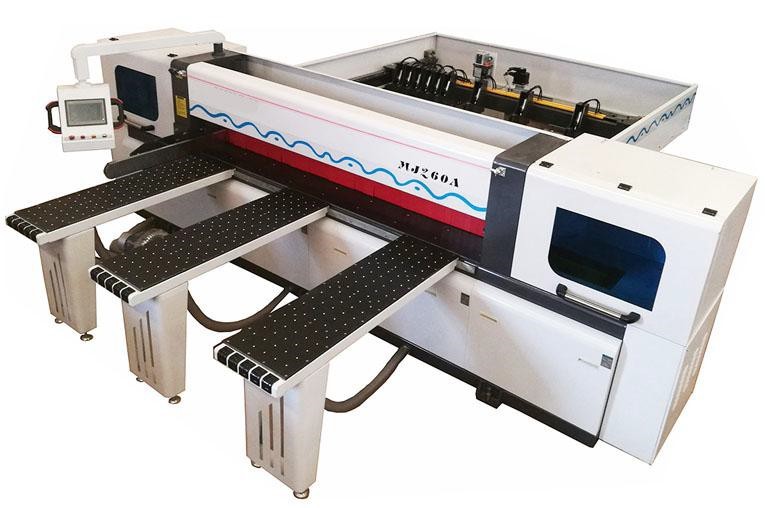

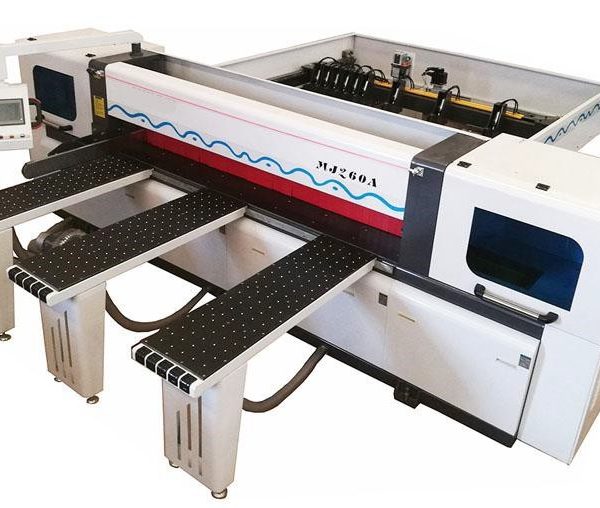

IPS-MJ330A

Reciprocating panel saw

USD $60,500.00


Model-IPS-MJ330A

Brand-Integrated Power System

Application:
This machine can be used for cutting many types of wood panels, pvc, acrylic sheet, aluminum sheet etc.

Working Steps:
Loading panels on working table ? input the data on the touch screen ? machine scratch the
panels ? Machine run ? Auto fix location, auto align, auto cutting ? Panel finished cutting, auto feeding

SKU: 0894336dda3b Category: Tag:

Description

Model MJ330A
Max. Cutting length 3300mm
Max. Cutting thickness 90mm
Diameter of main saw blade 355/400mm
Diameter of main saw spindle 60mm
Rotation speed of main saw blade 5600r/min
Diameter of scoring saw blade 180mm
Diameter of scoring saw spindle 30mm
Rotation speed of scoring saw blade 6100r/min
Forward speed of saw carriage 0-60m/min
Backward speed of saw carriage 0-100m/min
Drive motor of main saw blade 11kw
Guide rail Linear guide rail
Scoring saw power 1.5kw
Automatic feeding motor 1kw
Drive motor of saw carriage 1.5kw
High pressure ventilator motor 1.5kw
Total power consumption 17kw
Automatic feeding motor 0-60m/min
Pneumatic pressure 6-8kg/cm2
Table height from floor 900mm

Additional information

Weight 5700 lbs
Dimensions 230 × 230 × 70 in
