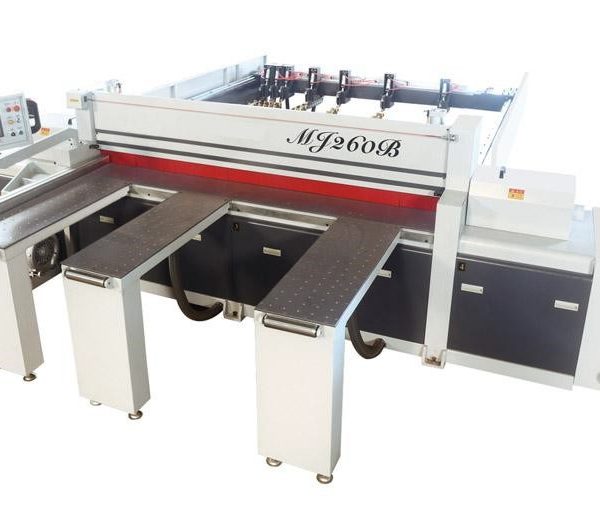

IPS-MJ260B

Reciprocating panel saw

USD $42,500.00


Model-IPS-MJ260B

Brand-Integrated Power System

Application:
This CNC panel saw can be used on various of different materials : MDF, particalboard, plywood, solid wood, PVC, Acrylic, ABS, aluminum etc.

Features:
1. The machine equipped with air floating work table, easy to load the materials.
2. All PLC control, easy and simple operation. Equipped with Optimized software, can be directly imported material listing, optimized cutting and printing labels.
3. There is a fault alarm device,machine will stop at once when it work failure and have the function of fault detection,easy to check the cause of the problem.
4. Machine use international famous electric components from Japan, to ensure stability and high accuracy.

SKU: 96c25bea550a Category: Tag:

Description

Model MJ260B
Max. Cutting length 2600mm
Max. Cutting thickness 75mm
Diameter of main saw blade 355mm
Diameter of main saw spindle 60mm
Rotation speed of main saw blade 5600r/min
Diameter of scoring saw blade 160/180mm
Rotation speed of scoring saw blade 6100r/min
Cutting speed 0-60m/min
Main saw power 9kw
Guide rail Linear guide rail
Scoring saw power 1.5kw
Feeding motor power 1.1kw
Total power 13kw
Table height from floor 900mm

Additional information

Weight 4100 lbs
Dimensions 220 × 220 × 70 in
