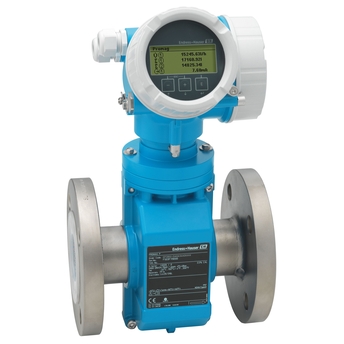

5P2B50-C4BMCDEA2KGA

Description

ENDRESS+HAUSER
Approval:C4 CSA C/US NI Cl.I Div.2 Gr. ABCD
Output:B 4-20mA HART, pulse/freq./switch output
Display; Operation:M Prepared for display FHX50+custom connection
Housing:C GT20 dual compartment, alu, coated
Electrical Connection:D Thread NPT1/2
Liner:E PTFE
Process Connection:A2K Cl.300, carbon steel, flange ASME B16.5
Electrodes:G 1.4435/316L, bullet nose
Calibration Flow:A 0.5%
Details: Assign current output: Volume flow
Current span: 4…20 mA US
Value 0/4 mA: 0 USgal/min
Value 20 mA: 75.00000 USgal/min
Failure mode: Max.
Damping output 1: 3.00000 s
Assign pulse output: Volume flow
Pulse value (per pulse): 0.50000 USgal
Pulse width: 100.00000 ms
Output signal: Passive – positive
Failure mode: No pulses.
