0AE5.0P1200-50

Description

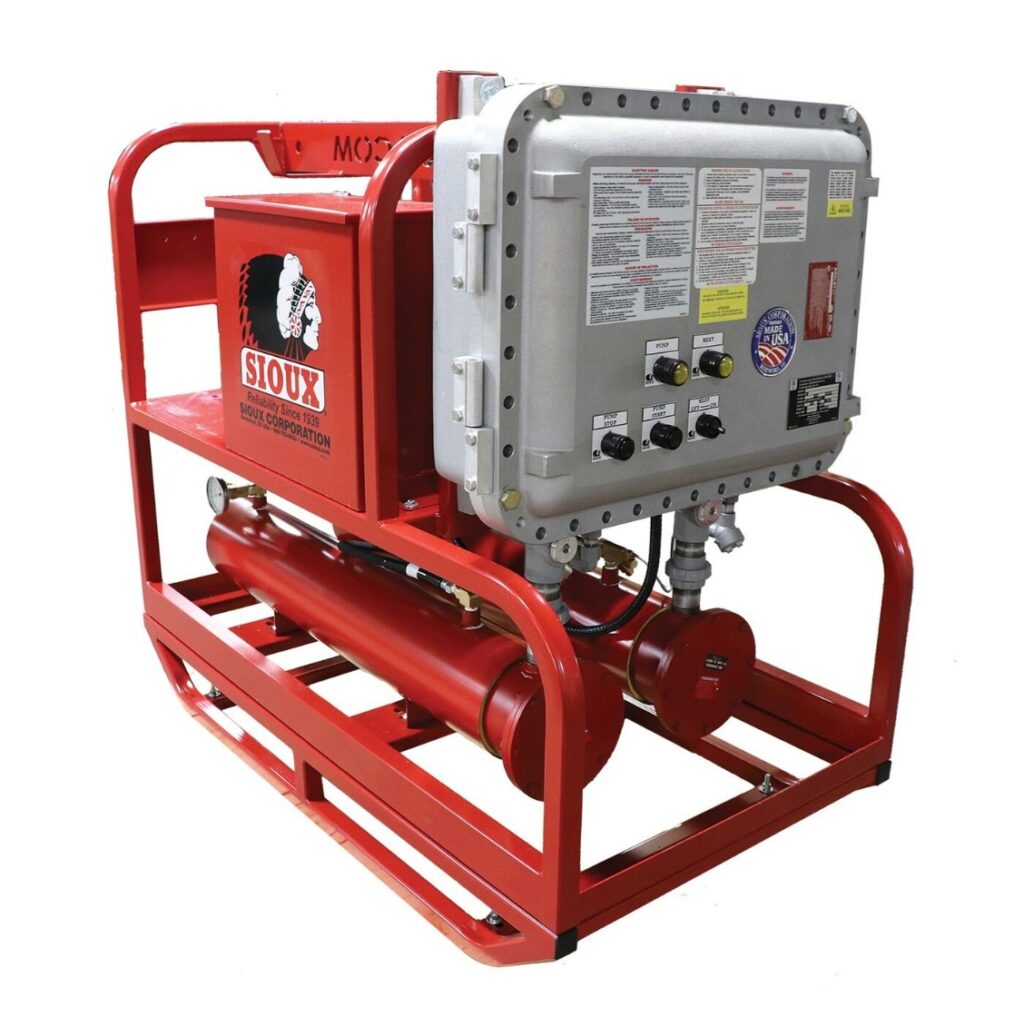

Sioux Model EN5.0P1200-50 All-Electric Hot Water, Pressure Washer, (Formerly model EN-300-H8-1200) Rated for 50C ambient temperature operation. 5 GPM @ 1200 PSI, 140F (18.9 LPM @ 82.8 BAR, 60 C)
1.6 GPM @ 250 PSI, 320F steam (6.1 LPM @ 17.2 BAR, 160C), 380V/3Ph/50Hz; operating current 102 amps, 5 HP (3.7 KW), TEFC, 1450 RPM motor
Triplex, ceramic plunger pump, (2) 30 KW electric heating element and vessel
Water tight main electrical enclosure with On/Off controls and indicator lights for
the electric motor and heating element. Circuit breakers for the motor, primary transformer, and heating element circuits. 3/8″ x 50′ wire braid hose (0.95cm * 15m)
Trigger type, insulated pistol grip, shutoff gun with 36″ barrel and side grip (91cm)
Three wash tips of 0, 15, and 25 degree. Brass round steam nozzle and stainless steel steam fan nozzle. Detergent metering valve Includes stainless steel float tank, high pressure relief valve, high temperature limit switch, water flow switch, thermometer, and pressure gauge. Includes hour meter and shutdown timer.
Caster mounted, powder coat paint finish, carbon steel frame with dual lifting
eyes. E-Stop with Key Release
Float Tank Level Switch
SCR Controller
24 Month Warranty.
Built to UL1776, UL 508A, CSA 22.2 No. 68 and CSA C22.2 No. 14 Standards.
Meets the National Electric Code (NEC), the Canadian Electric Code (CEC),
and complies with OSHA Regulation 1910.303(a).
Schedule B Number: 8424.30.9000.
