TC12-ABJ1MXGA1000-TZ1

Description

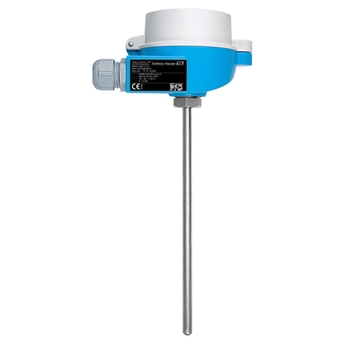

Endress+Hauser TC12 Modular TC thermometer

Approval: A Non-hazardous area Head
Cable Entry: B TA30A Alu, IP66/68; M20
Pipe Diameter; Material: J 9mm; Alloy600, max. 1100oC
Process Connection: 1 TA50, G1/2, 316L
Tip Shape: M Reduced, L>=50mm
Immersion Length L: X 1000 mm ….. mm
Head Transmitter; Range: G **TMT181 (PCP); 4-20mA, temp. range to be spec.
TC Type; Material: A 1xtype K; Alloy600, max. 1100oC
TC Standard; Accuaracy; Hot Junction: 1 IEC60584-2; class 1; ungrounded
Material Certificate: 0 Not needed
Test Report: 0 Not needed
Additional Option: 0 Not needed
Marking: TZ1 Tagging (TAG), metal
Details:
Low range value: -40 °C
Upper range value: 1100 °C
Bustag:
71072708 Metal label
Device: 1 TT-3865.
