PMP71-ABA1PE6AAAAA+Z1 Endress+Hauser Pressure, piezoresistive. Compact. Application: pressure/level. Membrane: metal, welded.: High reliability through process monitoring.: High long term stability. :: Modula A Approval: Non-hazardous area B Output; Operating: 4-20mA HART; inside + LCD A Housing; Cover Sealing; Cable Entry: T14 Alu IP66/67 NEMA6P; EPDM; M20 gland, T14 = side cover (Ex d > M20 thread) 1P Sensor Range; Sensor Overload Limit: 10bar/1MPa/150psi gauge; 40bar/4MPa/600psi E Calibration; Unit: Customized pr+D1essure; see additional spec. 6 Membrane Material: Rhodium>Gold>316L AA Process Connection: NPS 1" Cl.150 RF, 316/316L flange ASME A Fill Fluid: Silicone oil A Additional Option 1: Not selected A Additional Option 2: Not selected Z1 >>Marking: Tagging (TAG), see additional spec. Details Low range value 0.000 bar Upper range value 10.000 bar Display main line cont. Measured value[PV] Damping [s] 2.

Description

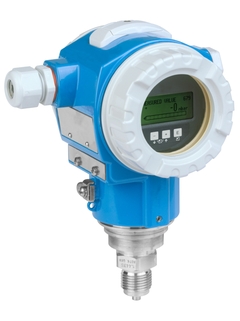

Endress+Hauser Pressure, piezoresistive. Compact. Application: pressure/level. Membrane: metal, welded.: High reliability through process monitoring.: High long term stability. :: Modula
A Approval: Non-hazardous area B Output; Operating: 4-20mA HART; inside + LCD A Housing; Cover Sealing; Cable Entry: T14 Alu
IP66/67 NEMA6P; EPDM; M20 gland, T14 = side cover (Ex d > M20 thread)
1P Sensor Range; Sensor Overload Limit: 10bar/1MPa/150psi gauge; 40bar/4MPa/600psi E Calibration; Unit: Customized pr+D1essure; see
additional spec. 6 Membrane Material: Rhodium>Gold>316L
AA Process Connection: NPS 1″ Cl.150 RF, 316/316L flange ASME
A Fill Fluid: Silicone oil A Additional Option 1: Not selected
A Additional Option 2: Not selected Z1 >>Marking: Tagging (TAG), see additional spec. Details
Low range value 0.000 bar Upper range value 10.000 bar
Display main line cont. Measured value[PV] Damping [s] 2.

Additional information

Sub Title	Instrument
