PMC51-BB21JA1CGJGMJN+AAZ1

Description

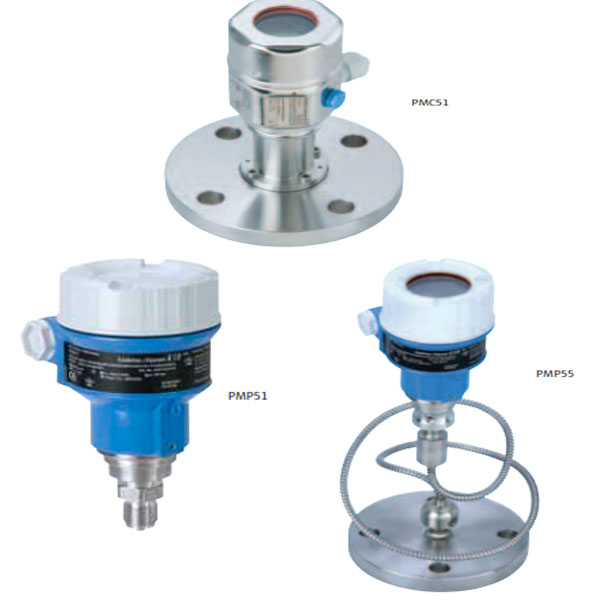

Cerabar M PMC51 2,879.74 PMC51-6NV31/101
Pressure, capacitive.
compact.
Application: pressure/level.
Membrane: Ceraphire,
dry, vacuum proof.
:: Easiest on-site operation.
:: Modular.
Order code description
BB Approval: ATEX II1/2D Ex ta/tb IIIC Da/Db
2 Output: 4-20mA HART
1 Display, Operation: LCD, push button on
display/electronics
J Housing: F31 Alu, glass window
A Electrical Connection: Gland M20, IP66/68
NEMA4X/6P
1C Sensor Range: 100mbar/10kPa/1.5psi gauge,
1mH2O/3ftH2O/40inH2O overload: 4bar/400kPa/60psi
G Reference Accuracy: Standard
J Calibration; Unit: Customised pressure; see
additional spec.
GMJ Process Connection: Thread ISO228 G1/2 hole
11.4mm, 316L
N Seal: FFKM Kalrez 6221, FDA, USP Class VI
AA >Additional Operation Language: English
Z1 >>Marking: Tagging (TAG), see additional spec.
Details
Low range value 100.000- mbar
Upper range value 100.000 mbar
2nd value display none
Damping [s] 2
Device 1
Tag plate Stainless Steel (52006326)
.
Device 2
Tag plate Stainless Steel (52006326)
.
US
Country of origin
US
Country of
dispatch
9026204000
