Description

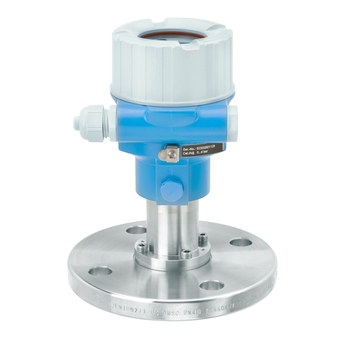

E+H Cerabar M PMC51
BA Approval: ATEX II1/2G Ex ia IIC T6 Ga/Gb
2 Output: 4-20mA HART
1 Display, Operation: LCD, push button on
display/electronics
J Housing: F31 Alu, glass window
A Electrical Connection: Gland M20, IP66/68
NEMA4X/6P
2K Sensor Range: 2bar/200kPa/30psi abs,
20mH2O/67ftH2O/800inH2O abs overload:
18bar/1.8MPa/270psi
G Reference Accuracy: Standard
B Calibration; Unit: Sensor range; mbar/bar
GMJ Process Connection: Thread ISO228 G1/2 hole
11.4mm, 316L
N Seal: FFKM Kalrez 6221, FDA, USP Class VI
AA >Additional Operation Language: English
Z1 >>Marking: Tagging (TAG), see additional spec.
