PMC51-BA21JA1SGJGMJN+AAZ1

Description

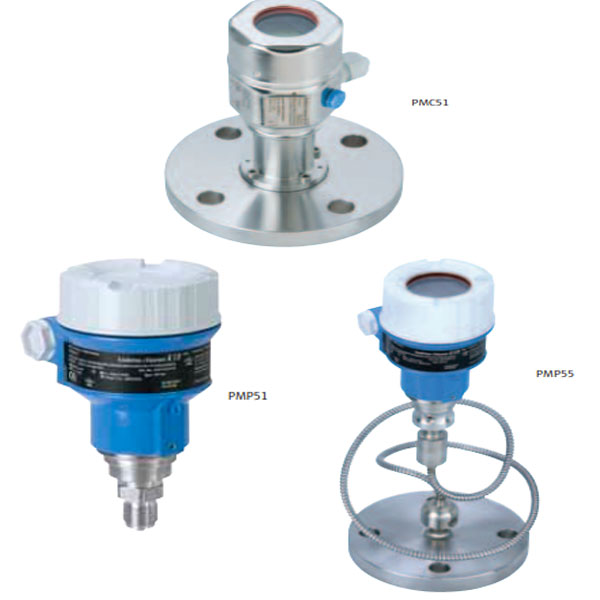

Endress+Hauser Absolute and
gauge pressure Cerabar M PMC51

BA Approval: ATEX II1/2G Ex ia IIC T6 Ga/Gb
2 Output: 4-20mA HART
1 Display, Operation: LCD, push button on
display/electronics
J Housing: F31 Alu, glass window
A Electrical Connection: Gland M20, IP66/68
NEMA4X/6P
1S Sensor Range: 40bar/4MPa/600psi gauge,
400mH2O/1334ftH2O/16000inH2O overload:
60bar/6MPa/900psi
G Reference Accuracy: Standard
J Calibration; Unit: Customised pressure; see
additional spec.
GMJ Process Connection: Thread ISO228 G1/2 hole
11.4mm, 316L
N Seal: FFKM Kalrez 6221, FDA, USP Class VI
AA >Additional Operation Language: English
Z1 >>Marking: Tagging (TAG), see additional spec.
Details
Low range value 1.000- bar
Upper range value 40.000 bar
2nd value display none
Damping [s] 2
Device 1
Tag plate Stainless Steel (52006326)
