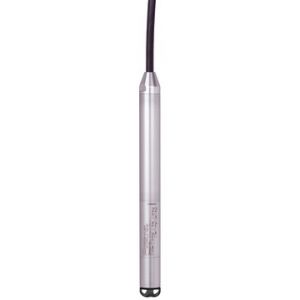

FMX21-AA211QGJ25A+F1POPSZ1

Description

Endress-Hauzer Approval: AA Non-hazardous area
Output:2 4-20mA HART
Probe Tube: 1 316L, d=22mm/0.87in.

Sensor Range: 1Q 20bar/2MPa/300psi gauge, 200mH2O/667ftH2O/8000inH2O
Reference Accuracy:G Standard
Calibration; Unit:J
Customised pressure; see additional spec.
Probe Connection:25
20.00 ft ….. ft cable, shortable, PE
Seal:AFKM
Calibration:F1
Factory calibration certificate, 5-point
Accessory Enclosed:PO
Suspension clamp, 316L
Accessory Enclosed:PS
Terminal box IP66/67
Marking:Z1
Tagging (TAG), see additional spec.
Details:
Low range value: 0 bar
Upper range value: 20 bar
Damping [s]: 2
Bustag:52006327 Self-adhesive paper label “
