FLUX 10-457 01 005

Description

Complete Portable Chemical Transfer Pump FLUX 10-457 01 005 includes

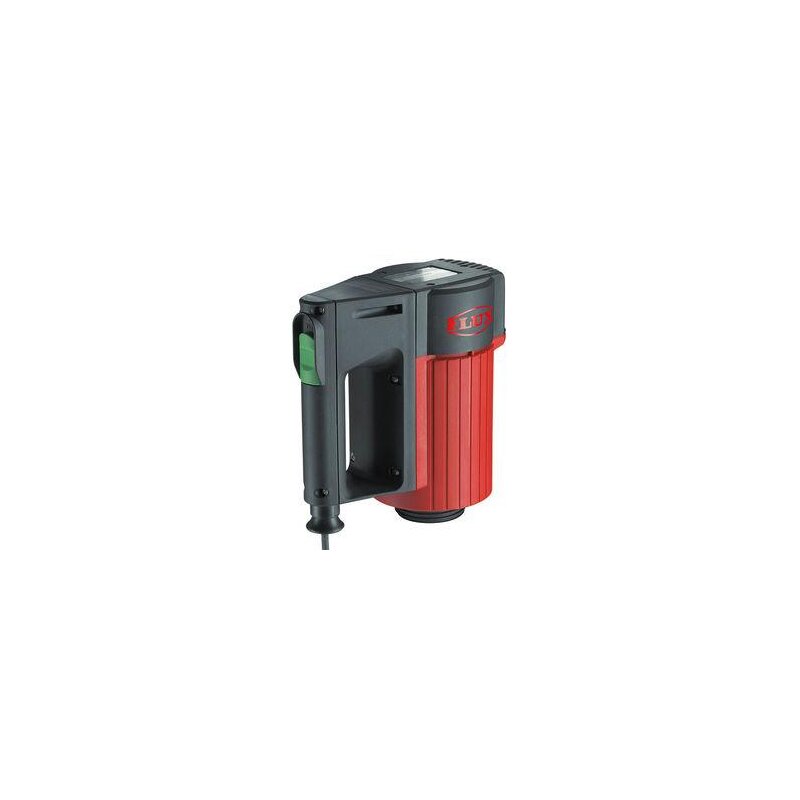

– Commutator motor F 457
230 V, 50 Hz, IP 24, 800 W
without electronic speed adjustment, with no-volt release, double insulated, protection class II, with overcurrent protection switch and safety plug
– Adaptor f. grounding type plug
CEE 7/VII / UK plug-in system
Adaptor for grounding type plug
CEE 7/VI
– Drum pump F 430
PP-40/33Z-1000, EPDM
In polypropylene (PP)
rotor in ETFE
inner tube in steel, PP covered
with mechanical seal in ceramic oxide, PTFE/carbon, O-rings in EPDM
shaft in the liquid section in Hastelloy C
thread on outlet: G 1 1/4 A
outer-Ø: 40 mm
immersion length: 1000 mm powered by a FLUX commutator motor, brushless or air motor
– Hose connection cpl. PVDF
DN 25, G 1 1/4
With union nut G 1 1/4
for hoses in PVC or NBR
without thermoplastic inliner
– PVC-hose, FOOD
DN 25, outer Ø 34, 5 bar
for neutral and aggressive
not easily flammable liquids. max. operating pressure at 20°C: 5 bar
Temperature: max. 60°C
Nominal size: DN 25
Outer diameter: 34 mm
with steel wire-helix
without Inliner, agreed to Regulation CE 1935/2004
– PVC-hose, FOOD
DN 25, outer Ø 34, 5 bar
for neutral and aggressive
not easily flammable liquids. max. operating pressure at 20°C: 5 bar
Temperature: max. 60°C
Nominal size: DN 25
Outer diameter: 34 mm
with steel wire-helix
without Inliner, agreed to Regulation CE 1935/2004
– FLUX Hose Clamp 31-34mm SS.
