8F2B80-AABCCASAD2SA+AAJCZ1

Description

Promass F 200, 8F2B80, DN80 3″
8F2B80-7T56/0
Your item number: 910010

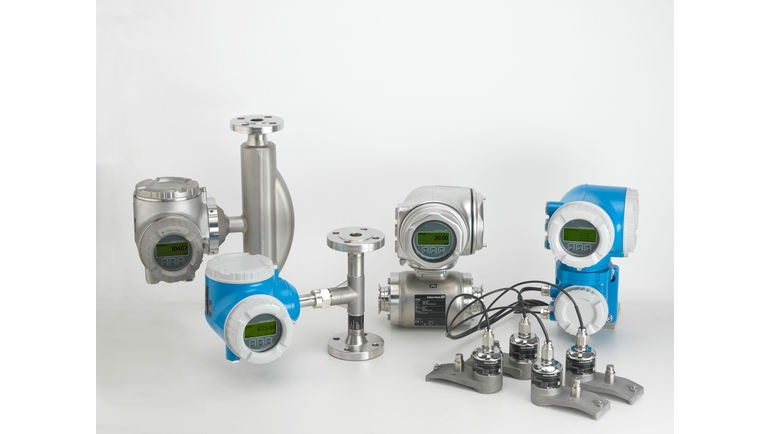

Coriolis flowmeter
Inline version.
Highest measurement performance
for liquids and gases
in a wide range of applications.
Compact and robust dual-tube sensor.
Pressure-rated sensor housing.
Loop-powered technology.
Robust dual-compartment housing.
:: Robust flowmeter with genuine
loop-powered technology.
Order code description
AA Approval: Non-hazardous area
B Output; Input: 4-20mA HART, pulse/freq./switch
output
C Display; Operation: SD02 4-line; push buttons +
data backup function
C Housing: GT20 dual compartment, alu, coated
A Electrical Connection: Gland M20
SA Meas. Tube Mat., Wetted Parts Surface: Stainl.
steel, not polished
D2S Process Connection: PN40, 1.4404/316/316L, flange
EN1092-1-B1
A Calibration Flow: 0.10% Mass
AA >Operation Language Display: English
JC >>Test, Certificate: Inspection certificate 3.1,
EN10204 (material certificate wetted parts+
sensor housing)
Z1 >>Marking: Tagging (TAG), see additional spec.
Details
Application
Select medium Liquid
Current output
Curr. output 1 Mass flow
Mass flow unit lb/min
Current span 4…20 mA US
4 mA value 0.00000 lb/min
20 mA value 1,300.00000 lb/min
Failure mode Max.
Output conditioning
Damping output 1 1.00000 s
Operating mode Pulse
Assign pulse output Mass flow
Pulse value (per pulse) 20.00000 lb
Pulse width 100.000 ms
Failsafe mode pulse
output
No pulses
Display
Format display 1 value, max. size
Value 1 display Mass flow
Value 2 display None
Value 3 display None
Value 4 display None
Totalizer 1
Unit lb
Operating mode totalizer Net flow total
Failure mode Stop
Totalizer 2
Unit lb
Operating mode totalizer Net flow total
Failure mode Stop
Totalizer 3
Unit lb
Operating mode totalizer Net flow total
Failure mode Stop
Output conditioning
Display damping 0.00000 s
Device 1
1x TAG-stainless steel label (50061469)
.
CH
Country of origin
CH
Country of
dispatch
9026802000
