7F2C2H-AADCCAACAAAD2SKA1+AAJAZ1

Description

Prowirl F 200, 7F2C2H, DN200 8″
7F2C2H-NHR1/0
Your item number: 910005

Your item number: 910005

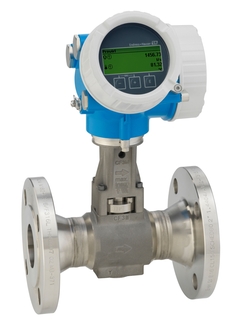

Vortex flowmeter
Inline version.
Suitable for a wide range of
applications; optimized for steam
applications.
Inlet run compensation.
Most linear meter body.
Automatic recovery of data
Robust dual-compartment housing.
:: Versatile, best-in-class accuracy
(optional) and drift-free DCS sensor.
:: Integrated temp. + pressure measuring
for mass flow of steam and gases (opt.).
Order code description
AA Approval: Non-hazardous area
D Output; Input: 4-20mA HART, pulse/freq./switch;
4-20mA input
C Display; Operation: SD02 4-line; push buttons +
data backup function
C Housing: GT20 dual compartment,alu,coated,compact
A Cable, Remote Version: Not used
A Electrical Connection: Gland M20
CA Sensor Version; DSC-Sensor; Meas. Tube: Mass;
316L; 316L (integrated temperature measurement),
-200…+400oC/-328…+750oF
A DSC-Sensor Seal: Graphite, -200oC… +400oC,
-328oF…752oF
A Pressure component: Not used
D2S Process Connection: PN40, flange EN1092-1-B1
K Calibration Flow: 0.75% volume 3-point
A1 Device Model: 1
AA >Operation Language Display: English
JA >>Test, Certificate: Inspection certificate 3.1,
EN10204 (material certificate wetted parts)
Z1 >>Marking: Tagging (TAG), see additional spec.
Details
Curr. output 1 Mass flow
Select medium Steam
Steam calculation mode Saturated steam
Current span 4…20 mA US
4 mA value 0.00000 lb/min
20 mA value 2,638.00000 lb/min
Failsafe mode current
output
Max.
Damping output 1 2.00000 s
Operating mode Pulse
Assign pulse output Mass flow
Pulse value (per pulse) 4.39645 lb
Pulse width 100.000 ms
Failsafe mode pulse
output
No pulses
Display
Format display 1 value, max. size
Value 1 display Mass flow
Value 2 display None
Value 3 display None
Value 4 display None
Display damping 0.00000 s
Totalizer 1
Unit ft3
Failure mode Stop
Totalizer 2
Unit lb
Failure mode Stop
Totalizer 3
Unit Scf
Failure mode Stop
Device 1
1x TAG-stainless steel label (50105107)
.
FR
Country of origin
FR
Country of
dispatch
9026102040
