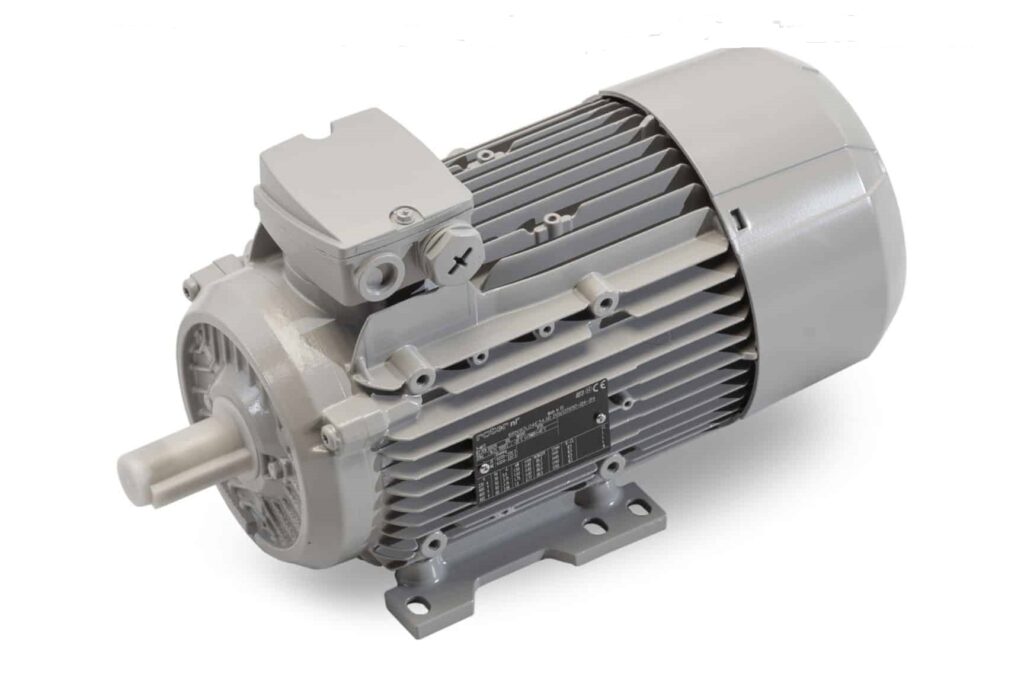

6RN80M04E33U24 1081 ROTOR NI motor 6RN80M04E33 Output 0,75 kW Mounting IM1081 Duty S1 Mass 14,50 kg Speed 1450 rpm Method of cooling IC411 Voltage D 230V / Y 400V Degree of protection IP55 Frequency 50 Hz Nom. torque 4,94 Nm Cos. phi 0,75 Efficiency IEC IE3 Nom.current 3,00 A / 1,75 A Output 0,86 kW Mounting IM1081 Duty S1 Mass 14,50 kg Speed 1750 rpm Method of cooling IC411 Voltage D 265V / Y 460V Degree of protection IP55 Frequency 60 Hz Nom. torque 4,69 Nm Cos. phi 0,75 Efficiency IEC IE3 Nom.current 2,98 A / 1,75 A.

Description

ROTOR NI motor 6RN80M04E33 Output 0,75 kW Mounting IM1081 Duty S1 Mass 14,50 kg Speed 1450 rpm Method of cooling IC411 Voltage D 230V / Y 400V Degree of protection IP55 Frequency 50 Hz Nom. torque 4,94 Nm Cos. phi 0,75 Efficiency IEC IE3 Nom.current 3,00 A / 1,75 A Output 0,86 kW Mounting IM1081 Duty S1 Mass 14,50 kg Speed 1750 rpm Method of cooling IC411 Voltage D 265V / Y 460V Degree of protection IP55 Frequency 60 Hz Nom. torque 4,69 Nm Cos. phi 0,75 Efficiency IEC IE3 Nom.current 2,98 A / 1,75 A.

Additional information

Size	piece
Sub Title	Electrical
